Filling machines

　

Applications:

　

fine granulates

　

　

powders

　

　

　

liquid

　

　

paste

　

　

　

　

　

　

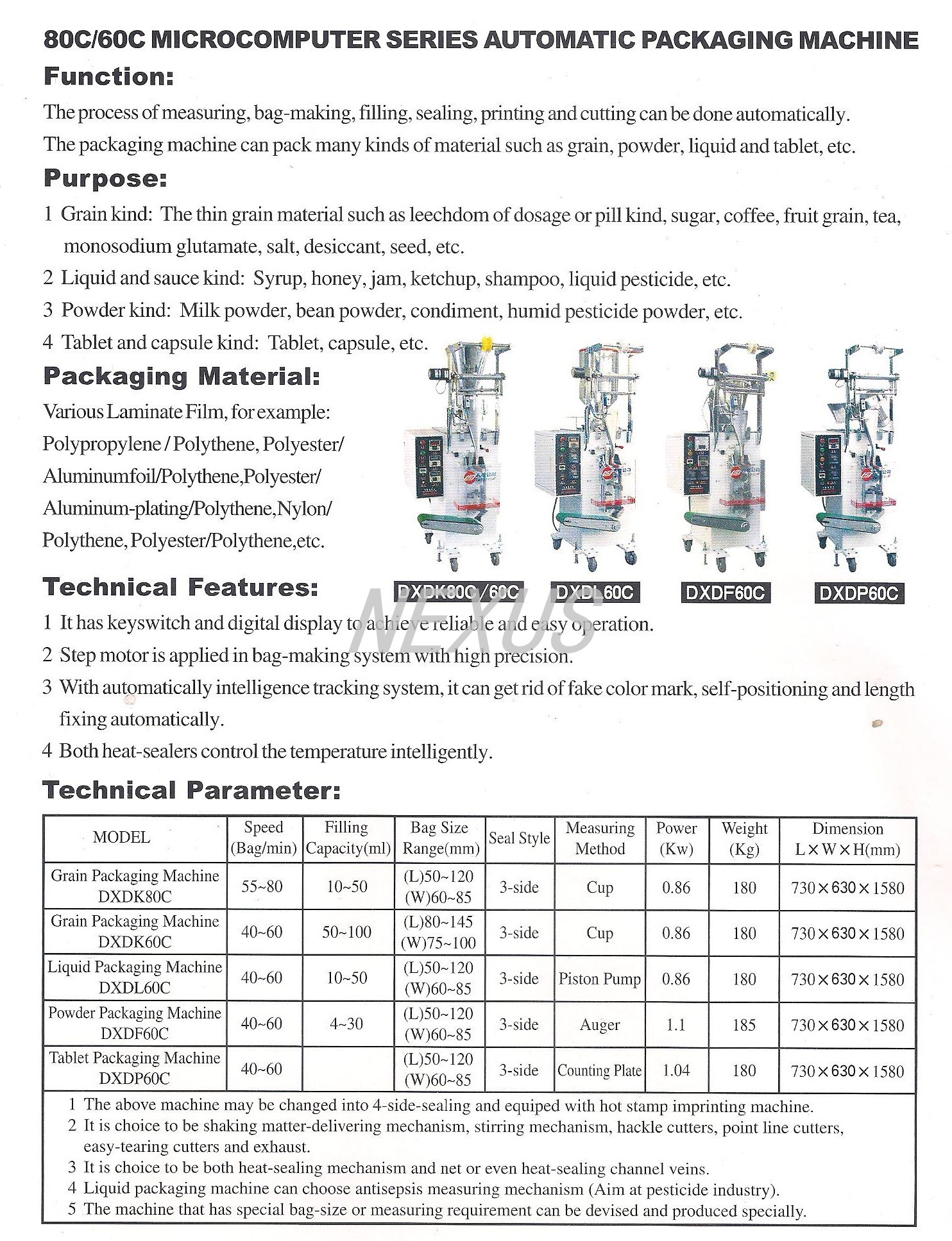

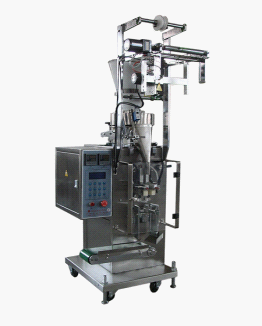

                       DXDK80C Microcomputer Packaging Machine

                                                                                                                                       Function:

　　                       The process of measuring, bag-making, filling, sealing,printing and cutting can be done automatically.

　　                       The packaging machine can pack many kinds of material such as grain, powder, liquid and tablet, etc.　

　　                       Packaging Material: Various Laminate Film, for example: Polypropylene / Polythene, Polyester/Aluminium

                           foil/Polythene,Polyester/Aluminium-plating/Polythene,Nylon/Polythene, Polyester/Polythene,etc.　

　　                       Technical Features:

　　                       1. Adopt CPU to control each function states, and setup the man-machine conversation interface.

　　                       2. The Double channel temperature of the horizontal and vertical is controlled by intelligent temperature controlling device.

　　                       3. Intelligent photo cell orientation, transform discretionarily between the light/shade. Strongly anti-jamming, when two bags can’t catch up with

                                   the upper mark, the machine will stop and give an alarm.

　　                       4. The packaging speed can be adjusted continuously within specified range. Orientation open mouth and stop.

　                       5. Measurement adopts volumetric cup method, which is accorded with the national measurement standard.　

　

                       Purpose:
　　                       Grain kind: The thin grain material such as leechdom of dosage or pill kind, sugar, coffee, fruit grain, tea, monosodium glutamate, salt, desiccant, seed, etc.

                       Technical Parameter:
　　                       Pouch length: 50～120 mm；
　　                       Pouch width: 60～85 mm；
　　                       Packaging speed:55～80 Bag/min（Depend on the material and specifications）
　　                       Filling Capacity：10～50 ml；

                       Seal Style：3-side；
　　                       Measuring Method：Cup；
　　                       Consumption power: Approx. 0.86 Kw / AC380V；
　　                       Dimension: 730 mm（L）X 630 mm（W）X 1580 mm（H）；
　　                       Weight: Approx. 180 Kg

　

                       Optional devices:
　　                       1.The above machine may be changed into 4-side-sealing and equiped with hot stamp imprinting machine.

　　                       2.It is choice to be shaking matter-delivering mechanism, stirring mechanism, hackle cutters, point line cutters, easy-                       tearing cutters and exhaust.

　　                       3.It is choice to be both heat-sealing mechanism and net or even heat-sealing channel veins.

                       4.The machine that has special bag-size or measuring requirement can be designed and produced specially.

　

                                                                                                                                                                       Elevator devices:

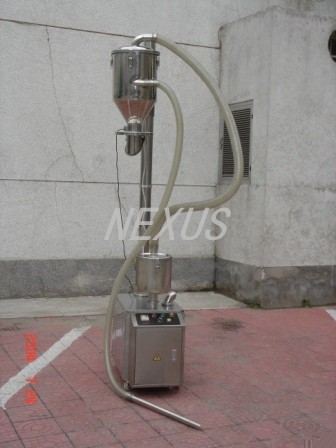

                                                                                                                                                                       vacuum elevator

　

　

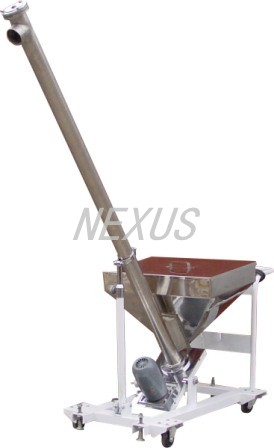

                                                                                                                                                                          screw elevator

　

                       Other specifications and types can also be supplied upon request.

　

Data subject to change without notice
