Nexus Machinery & Engineering Co., Ltd

 Copper rod, profile, busbar, wire and pipe casting and extrusion equipment

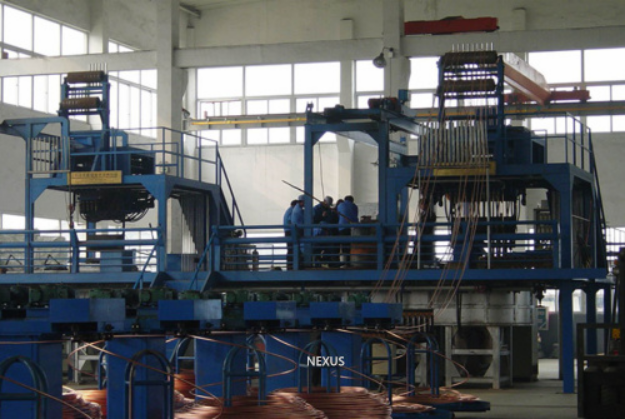

Copper rod upward casting

Φ40x4, Φ50x4.5, Φ60x6

Casting quantity: 2-24pcs

Speed: 0.3-3m/min

Copper profile casting

Product size: ≤120x20mm

Speed: 100-160mm/min

Copper busbar, wire and profile extrusion machine

Different capacity and section area

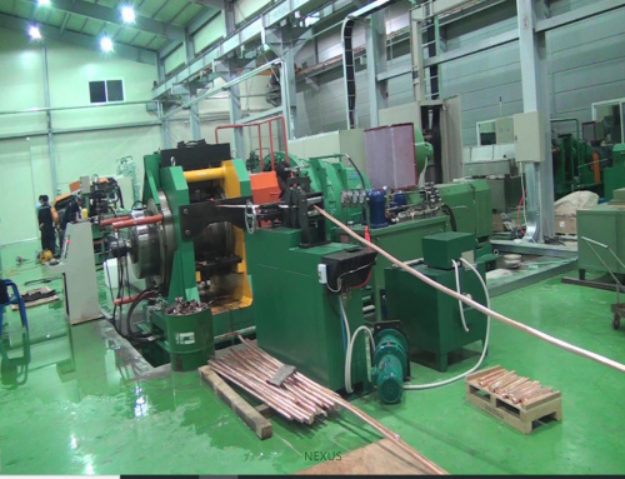

Hydraulic drawing bench

Drawing force 50ton and 100ton

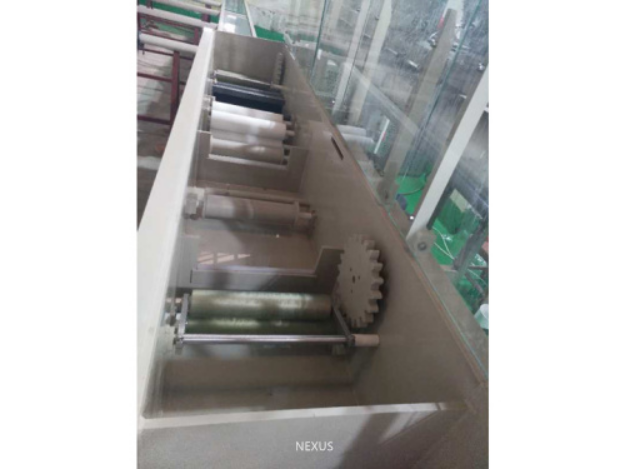

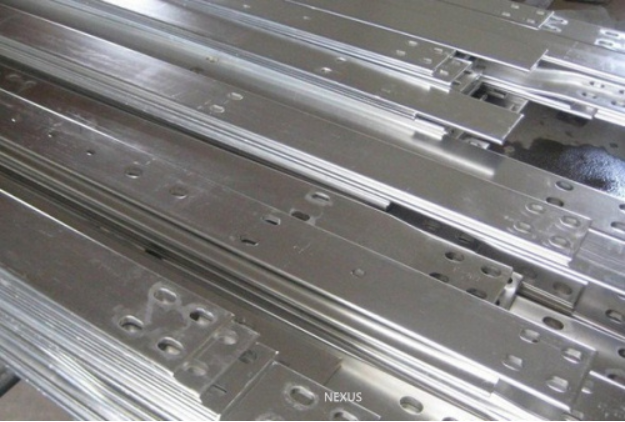

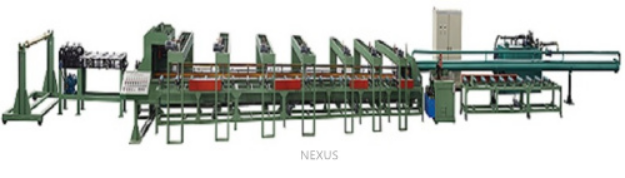

Cu Busbar tin coating line

Usage: to enhance conductivity of copper bus and improve anti-oxidization features.

The line consists of feed section, coating section, unloading & stacking section, water treatment system, exhaust air collection system, and electrical control system. The coating section includes degreasing, pickling, tin coating, washing and drying units.

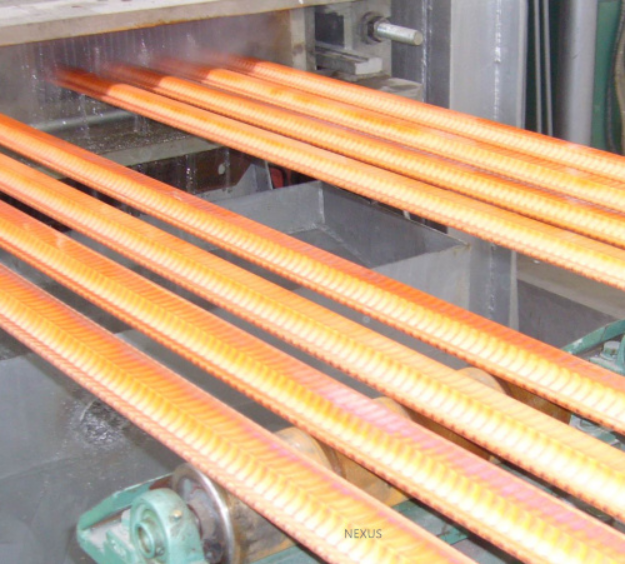

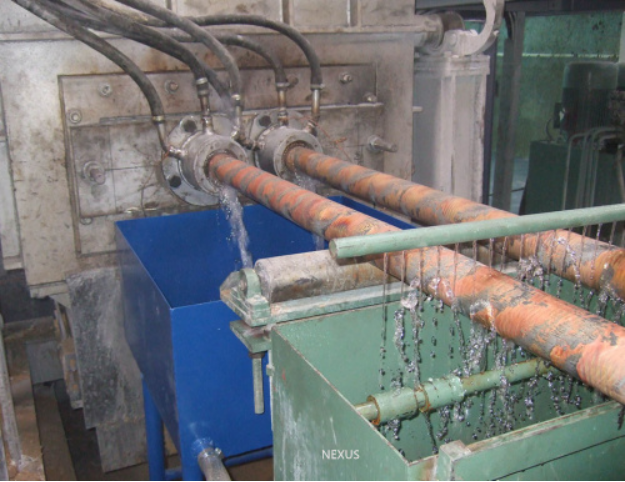

Copper pipe casting machine

Type: two strands, four strands, six strands

Size: Φ30-150mm

Speed: 120-700mm/min

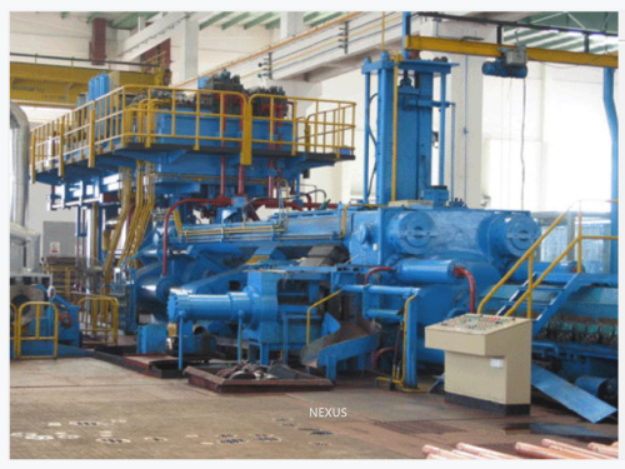

Copper extrusion press

Usage: extrusion of copper and copper alloy tubes, profile, rods and wires

Single action and double action

Extrusion force: up to 40MN

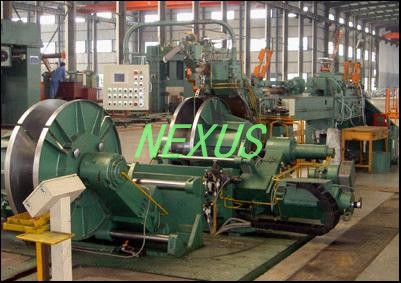

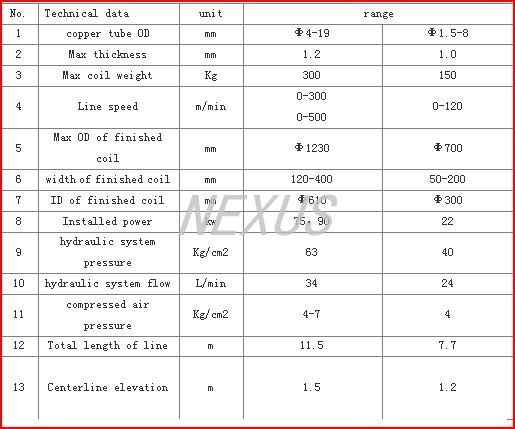

Copper tube recoiler unit

After finishing the process on bullblock, the copper tube shall go through

the recoiler unit for straightening, cleaning, drying, detection of defects (printing),

pre-bending, and recoiling processes, so as to be delivered to enduser

or to be further annealed.

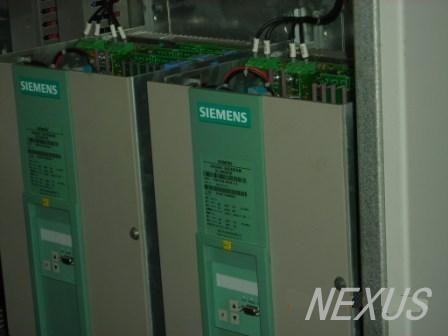

Siemens PLC control adopted for recoiler

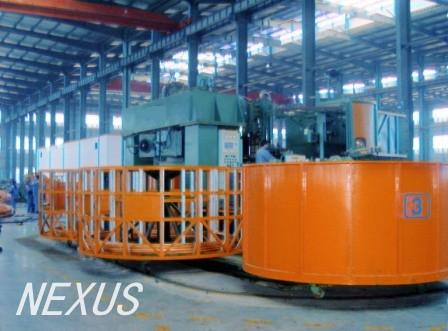

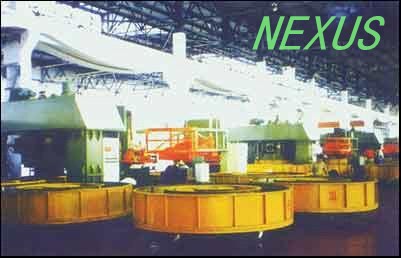

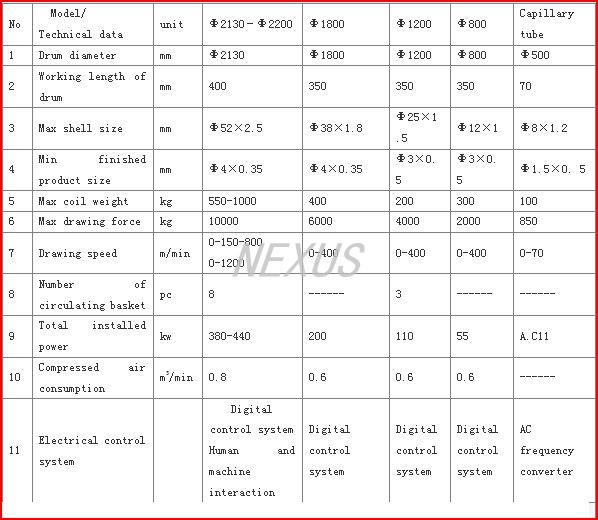

Upside down type copper tube bullblock

The equipment is used for drawing copper tube with high efficiency and good quality.

Siemens PLC control adopted for bullblock

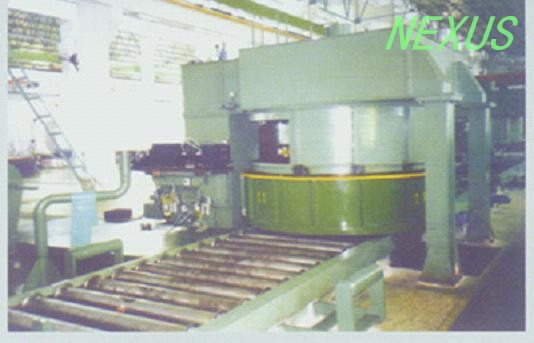

Inner grooved copper tube forming machine

During the drawing process, the inside wall of copper tube will be pressed

by special rotary device to form different teeth, number and angle.

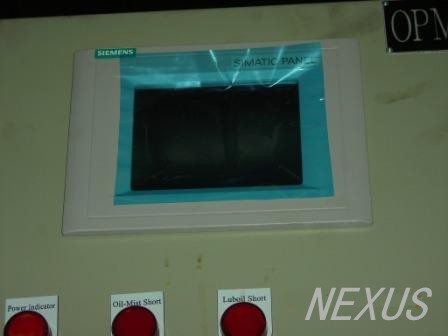

Siemens PLC control

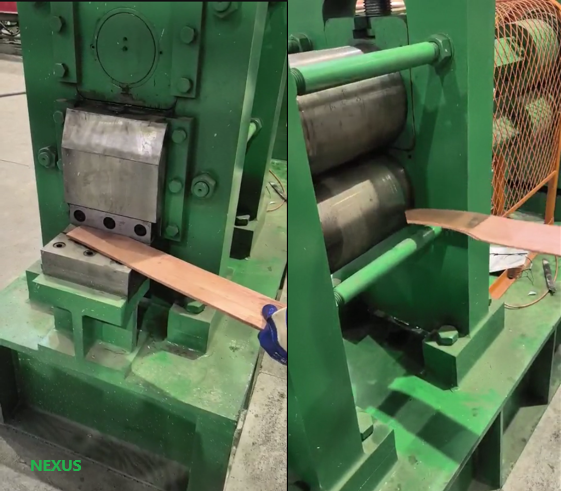

Pilger mill, hydraulic pointing machine, combined drawing machine, continuous induction annealing furnace etc are available upone request.

Data subject to change without notice
