Link Fence Machine

Nexus Machinery & Engineering Co., Ltd

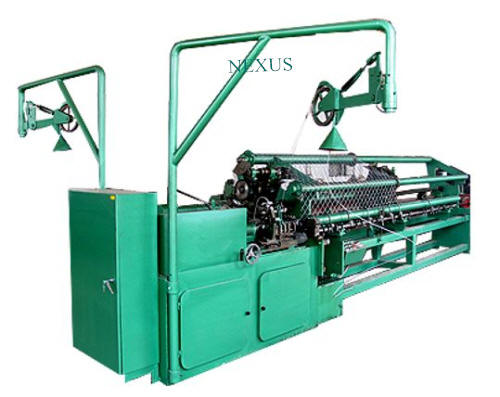

Automatic link fence machine (mechanical type)

Twisting the edge one side or both sides, or the edge with barbs.

Working range: pitch distance 30-80mm
Wire diameter：2-4mm（depending upon mesh pitch)
Fence width：2m、3m、4m. 5m. 6m
Blade shaft speed：200-500rpm(variable speed)
Power consumption: total 9.6KW four motors

Wire diameter reference chart

*Pitch*	30	40	50	60	70	80
*Wire dia.*	*2.0-3.5*	*2.0-3.5*	*2.0-3.5*	*2.0-4.0*	*2.0-4.0*	*2.0-4.0*

Note: Each bundle of steel wires shall have identical hardness, otherwise it may influence continuous operation.

The machine adopts PLC control and variable speeds.

PLC brand: Siemens or other brand as per client’s request (note: PLC made by

Siemens Co. in China, same for other brands)

AC servo motor: Delta, Taiwan

Square tubes on chassis: 120*120*8

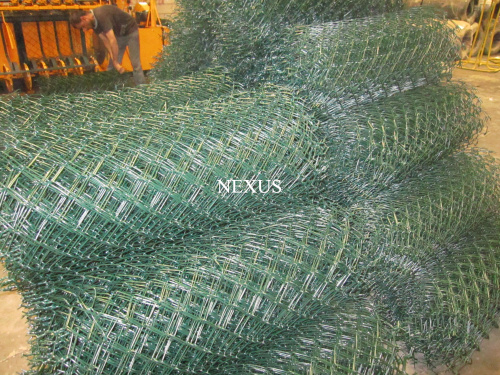

Output: pitch 60*60 as example

4m 60-70m2/hr

5m 75-80m2/hr

6m 85-90m2/hr

Data subject to change without notice
