Nexus Machinery & Engineering Co., Ltd
Flour
Mill
General process: Removing
impurities & sorting----surface cleaning----moisture adjustment, wheat
conditioning & batching---milling---sifting-purification—flour collection &
batching
|
Removing impurities
&
sorting |

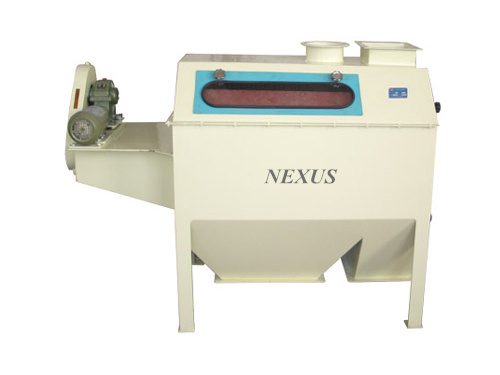

drum sieve
Drum dia.630,800,1000,1200; capacity:
20-80ton/hr
|
|

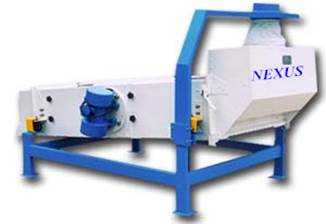

Reciprocating sieve
Max.capacity: 100ton/hr
|
|
|

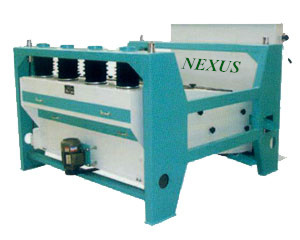

rotary separator
Max. capacity 200ton/hr
|
|
|
circulating air sorter
Max. capacity 26ton/hr
|
|
|
aspiration channel
Capacity 20ton/hr
|
|
|

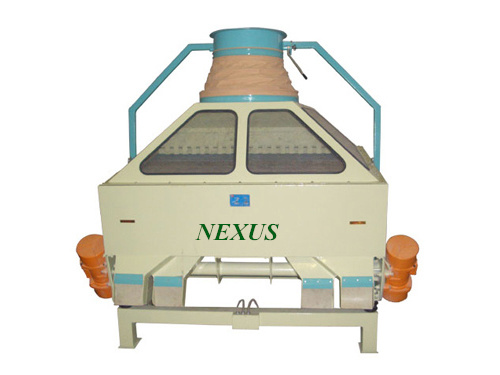

Gravitation grading dry stoner
Max. capacity 32-34ton/hr
|
|
|
Indented cylinder
Capacity: 8-10t/hr
|
|
|
Disc cylindrical separator
Capacity: 8-10t/hr
|
|
|

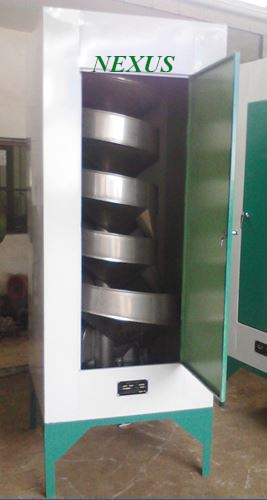

Spiral gravity separator
Capacity: combined separators can reach
treatment capacity 50-1000ton per day
|
|
|

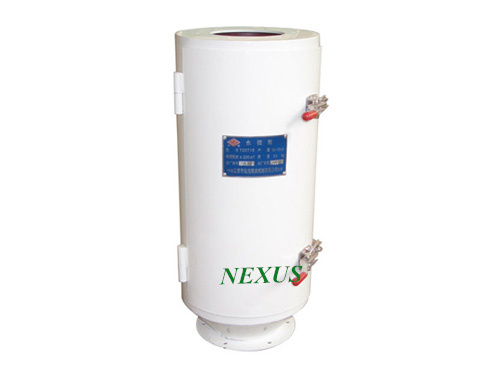

Vertical spout magnet
Max
capacity: 50-70t
|
|
|

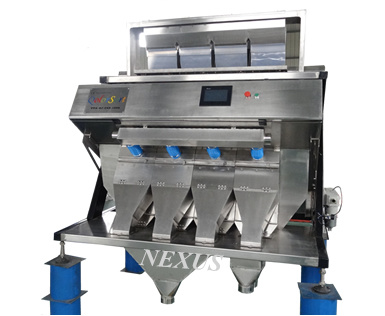

Wheat color sorter
Capacity 1.5-7.5t/hr
|
|
|
Surface cleaning
|

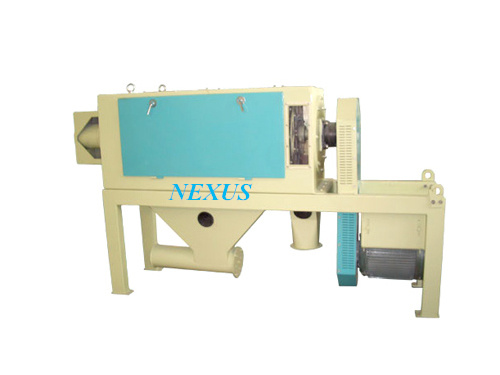

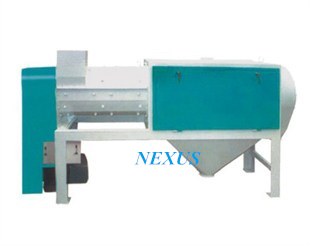

Horizontal scourer
Capacity 5-20t/hr
|
|

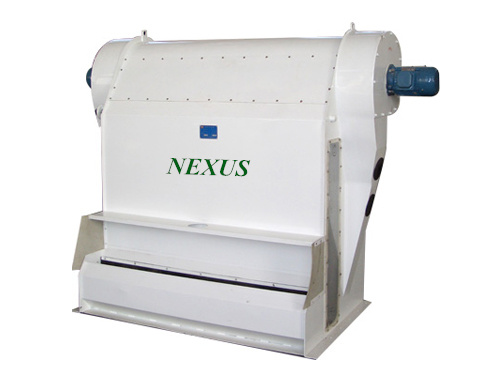

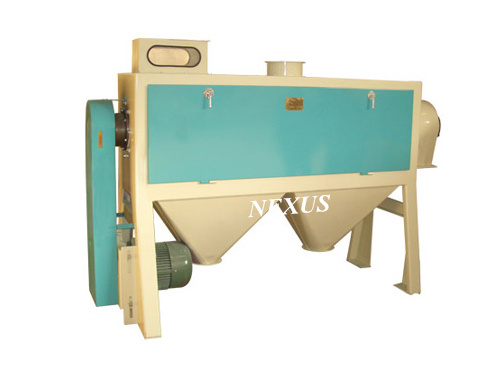

Drum scourer
Capacity: 20-50t/hr
|
|
|
Impact scourer
|
|
|
Combined wheat scourer and brush
Capacity 8-28t/hr
|
|
|
Vertical barker
Capacity 1-20t/hr
|
|
|
Wheat brush
Capacity 4-16t/hr
|
|
|

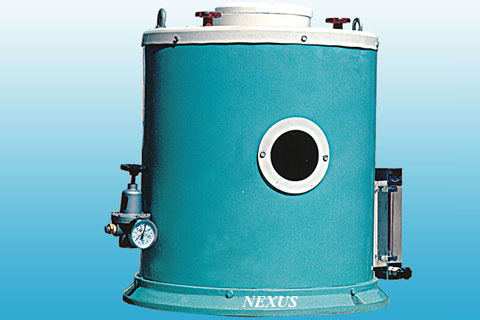

Wheat washer, stoner and whizzer
Capacity 1-50t/hr
|
|
|
Moisture adjustment
&
wheat conditioning & batching
|

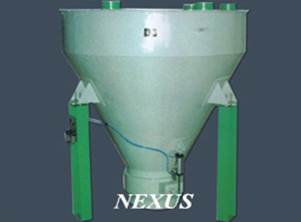

dampener
Capacity 5-50t/hr
|
|
|
|
|

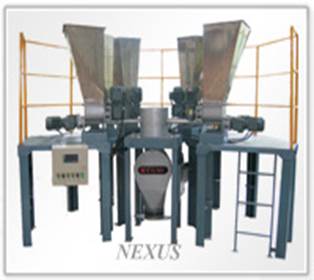

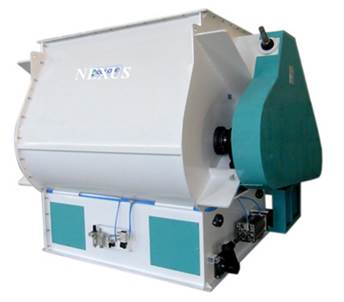

Wheat conditioning & batching
|
|
|
Milling
|

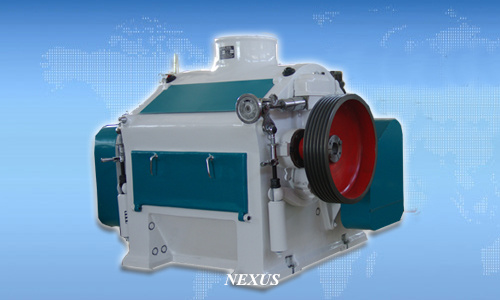

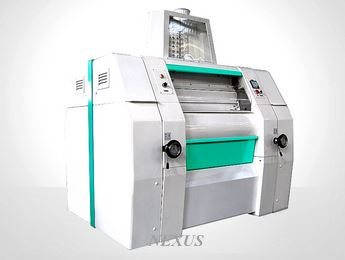

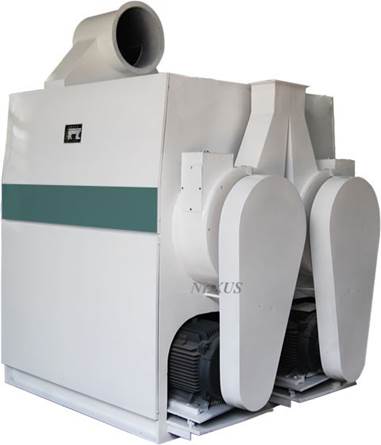

Pneumatic grinder
Different roller diameter and length
|
|
Hydraulic grinder
Roller diameter 250mm; roller length 800/1000mm
|
|
|
Impact detacher
Capacity 1-4t/hr
|
|
|
Drum detacher
Capacity 1-2.5t/hr
|
|
|
Sifting
、
|

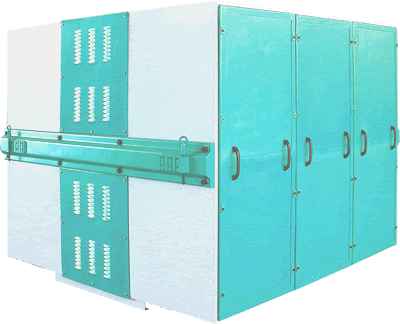

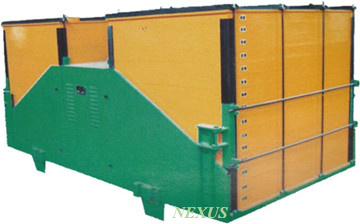

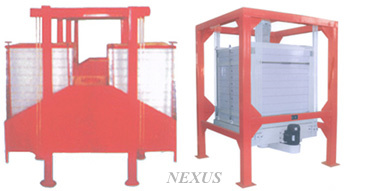

Square plansifter
Different compartment & sieve frame arrangement
available as per client’s requirements
|
|

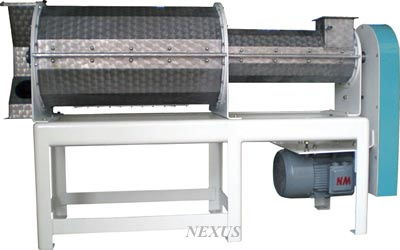

Bran finisher
Capacity 1-2.5t/hr
|
|
|
Bran brush
Different drum diameter and height
|
|
|
Purification |

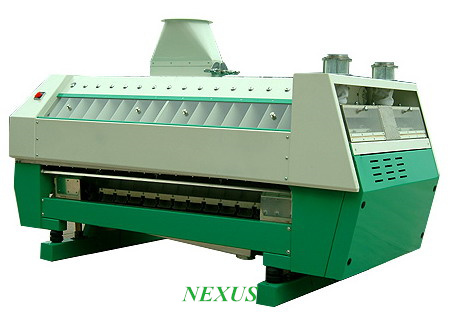

Purifier
Different capacity
|
|
Flour collection & batching
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

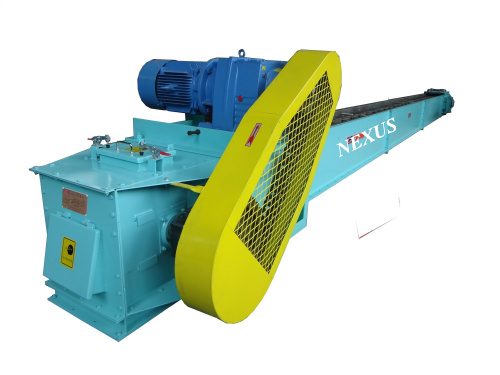

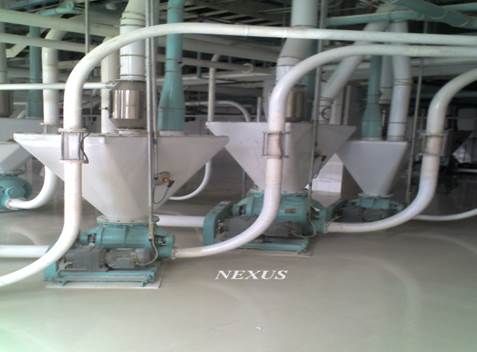

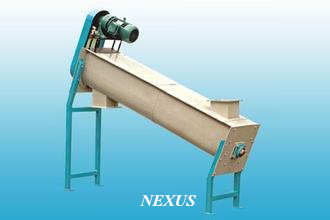

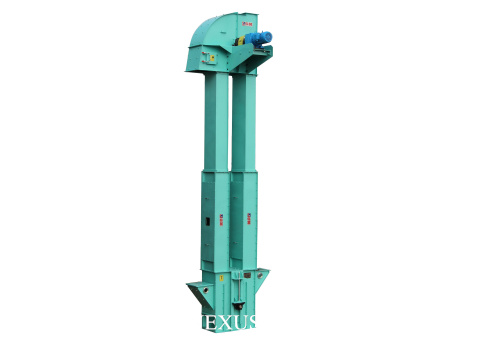

Conveying & stacking equipment |
|
|

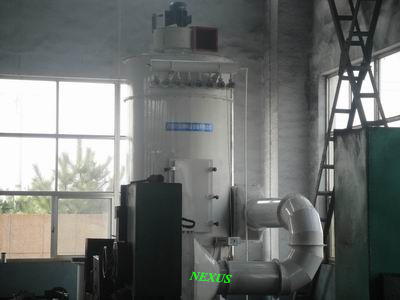

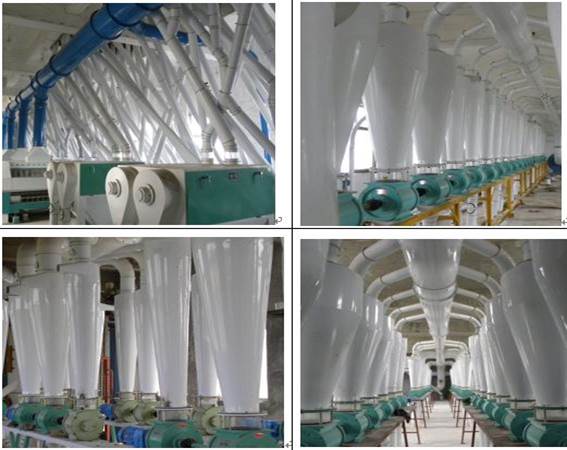

dedusting |
|
|

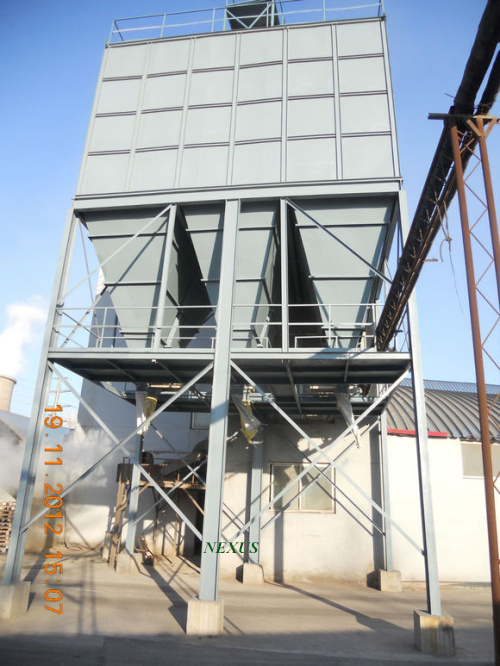

silo |
|
|
Control system |
DCS
control system
|
Spare parts
& accessories
|
|

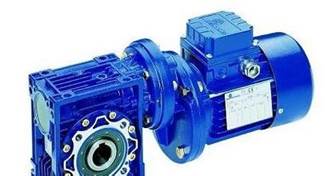

Gearboxes of various kinds |
Dust explosion proof motors
Frame size 63-355 with suitable protection marks
as per client’s requirements |
|

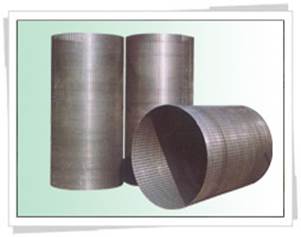

Screen grid |
Purifier brushes |
Screen mesh of different types |
|
|
|
|
|

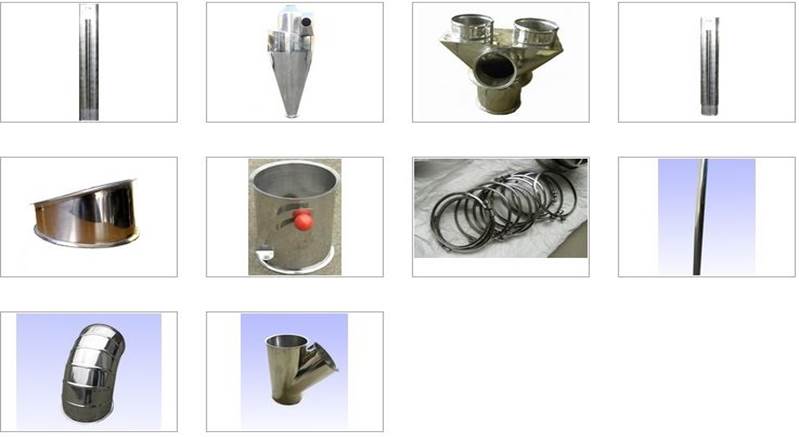

Stainless steel piping & fitting |
||
|
|
||
|
rubber absorber |

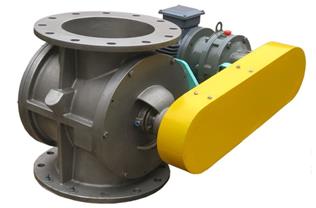

Rotary valve/pneumatic lock |
Stainless steel rotary valve/pneumatic lock |
|
discharge valve |
Pneumatic valve |
Motorized valve |
|
Pneumatic tee |
Motorized tee |
Pneumatic clutch for flour mill |
|
|

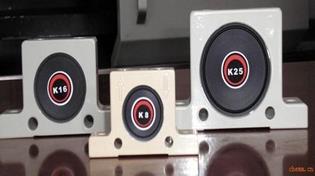

Pneumatic vibrator |
|
|
Pneumatic hammer |

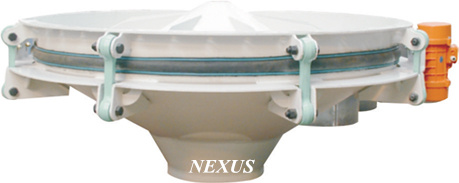

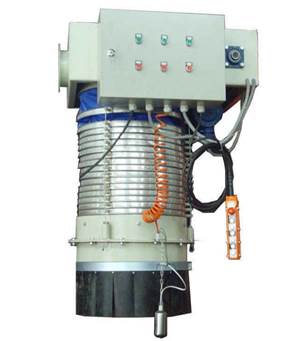

Bottom bin discharger |
Telescopic chute |
|
|
||
|
Level detector |
Level detector |
Roots blower |
|
Centrifuge fan |
Grain cooling machine |
|
|
Ex proof fluorescent lamp for different zone |

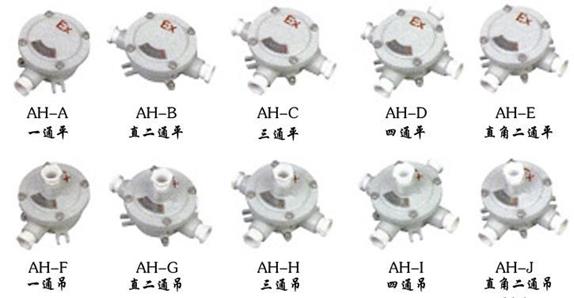

Ex proof junction boxes |
|
|
ex power distribution box |
Ex delta starter |
Ex roof ventilator |

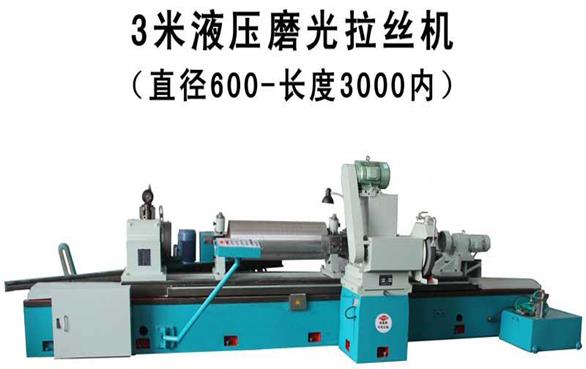

Flour Mill Roller Hydraulic Grinding and Fluting Machine
Technical Parameters
Roller diameter：
∮250－∮600mm
Roller length：
500－3000mm
Number of fluting：
100－1200flutes/circles
Fluting inclination：
≦8°，or
1：7（14％）
Accuracy of grinding：
roughness not lower than
Ra0.8
Roller speed during grinding：
25rpm
Grinding wheel speed：
≦1148rpm（or
20meters/second）
Table travel speed：about
1m/minute－10m/minute
Center height：
350mm
Total power：
12.75KW
Dimension：
L×W×H
7500×1300×1500mm
Weight：
about
10T
Other models with diameter 400mm and length 1.5m or 2.5m are also available.
Roller sand blasting machine
Roller max. diameter: 300mm;
Roller length: 600-1250mm
Max. sand blasting length: 1300mm

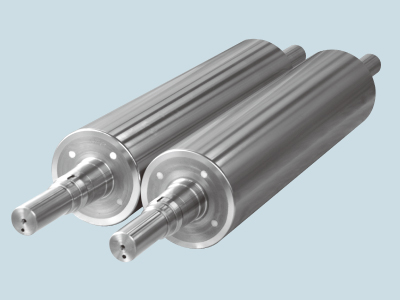

Flour mill roller series
Characteristics of flour mill rollers
Vanadium alloy formula and automatic centrifugal casting are applied for roller
fabrication.
Imported spectrum from Germany is used for analysis to make sure correct alloy
formula.
Low hardness, high wear resistance, roller surface hardness
61-67HS,
toothed roller hardness
68-74HS,
more suitable for flour mill
Our flour mill rollers can ensure flour output and extend roller service life,
reduce energy consumption, and effective improve flour milling plant
comprehensive benefits.
Data subject to change without notice
Copyright:
Nexus Machinery & Engineering Co., Ltd
Room 1701, 17/F, Hong Kong Trade Centre,
Nos. 161-167 Des Voeux Road Central, Hong Kong.
TEL: 00852 30697352
FAX: 00852 31577957
E-mail: info@nexusme.com.hk
moisture
control system
pneumatic
conveying
metal
removing
weighing
inspection
sieve
pest
killing
discharger
batching
scale

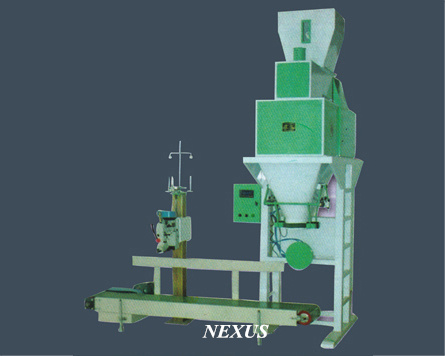

filling

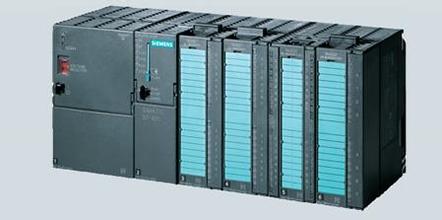

Siemens
