Process

Description

Cutting

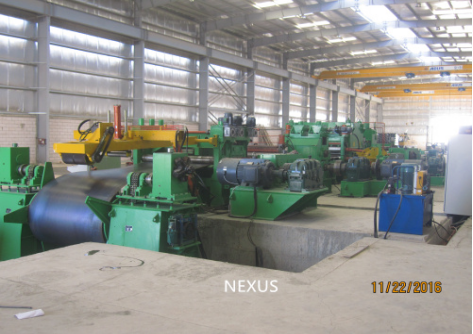

Cut to length line with different thickness, width, length and accuracy as per user requirements.

The line consists of decoiling machine, two leveling machines, centering and guiding devices, edge trimming machine, scrap winder, shearing machine (with swiveling angle), pinching, stacking, hydraulic system, electrical system etc.

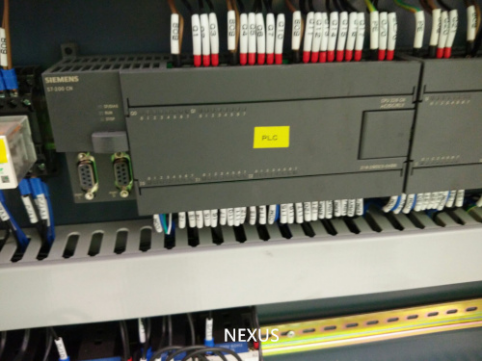

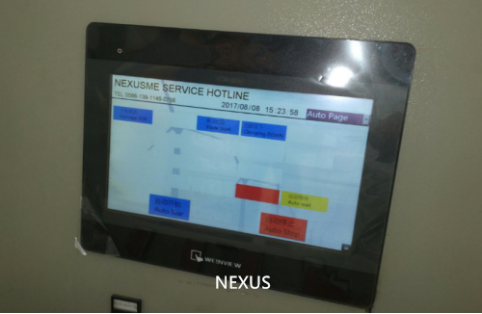

Siemens PLC

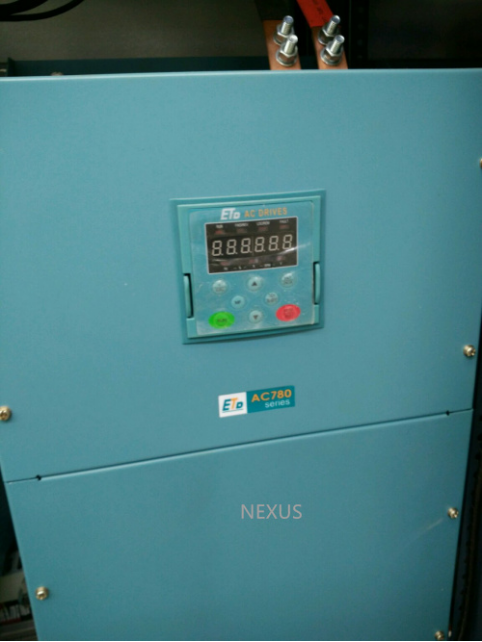

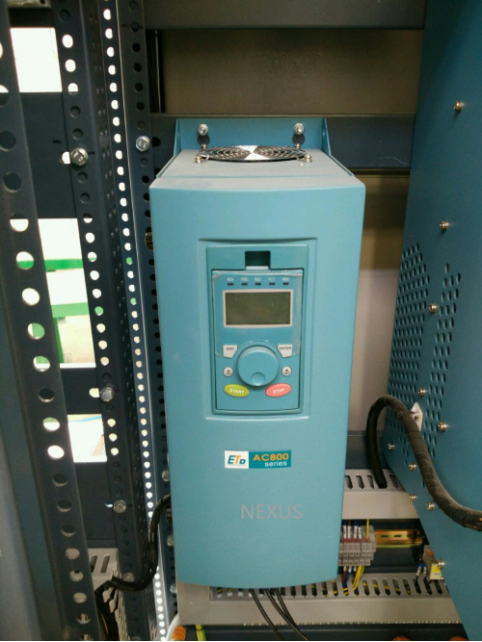

drives

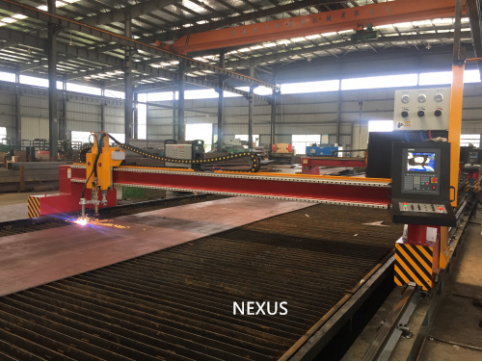

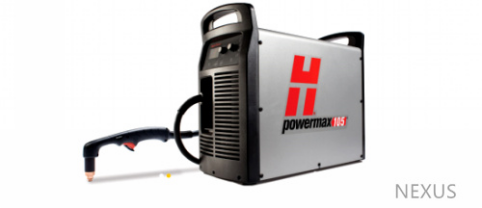

Plasma cutting as per user requirements

Trapezium cutting

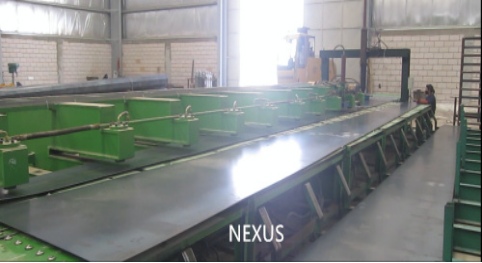

Trapezium cutting machine with sheet loading, clamping, trapezium cutting  , trapezium unloading functions etc

Automatic mode and manual mode are both available as per user requirements

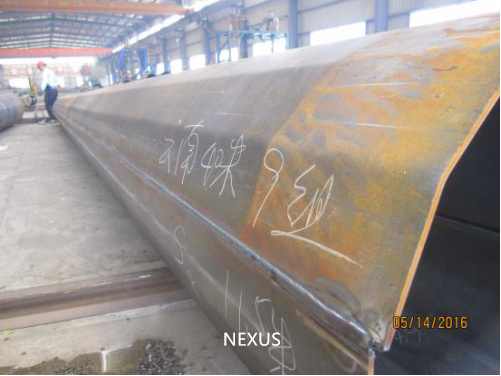

bending

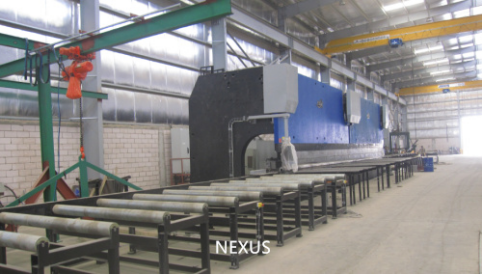

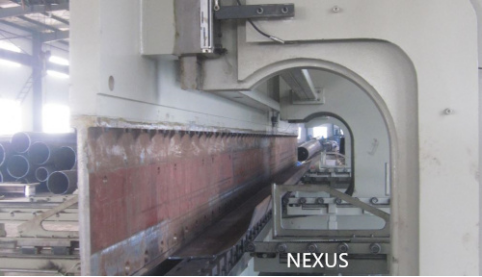

Tandem type hydraulic press brake with different bending capacity and length requirements

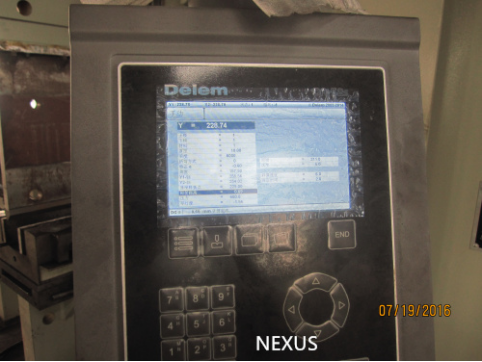

Delem control system

Welding

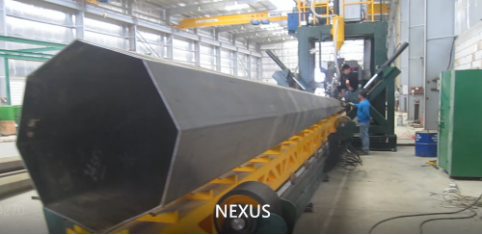

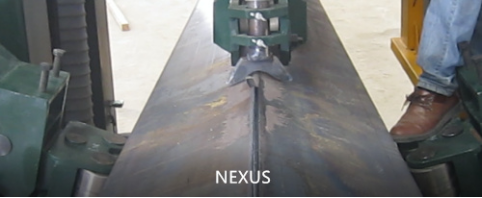

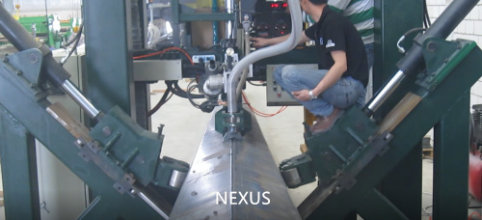

Submerged arc welding machine for different types of poles like conical, octagonal 12 sides, 16 sides, 18 sides, 22 sides,    etc with different thickness, length, diameter, and taper. Single and double welding wire with different diameter can be used.

For large pole with maximum diameter upto 1.6m, 1.8m, 2m and 2.5m

For medium pole with maximum diameter upto 1m

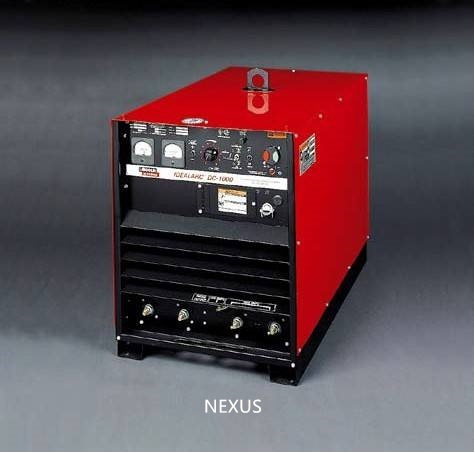

Lincoln welding source 600A, 1000A etc

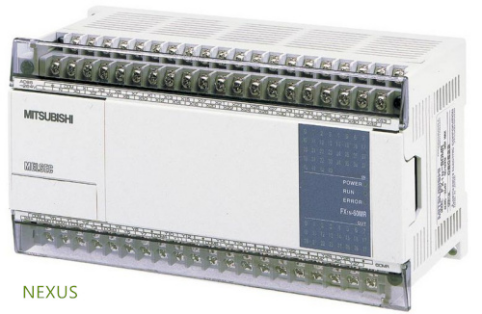

Mitsubishi PLC

For small pole with diameter from 60 to 500mm

Base plate welding machine

Used for welding different base plates for steel poles

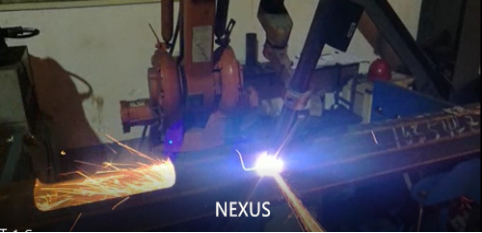

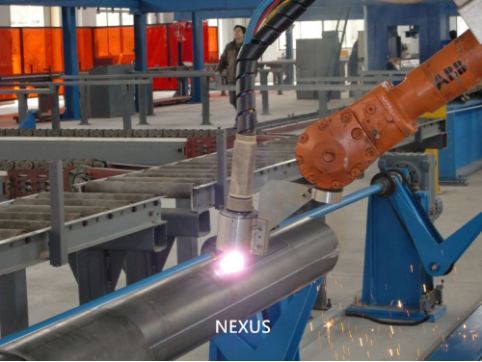

Robot type door cutting machine

Used for cutting door on conical, octagonal poles etc.

Pole diameter from 60 to 500mm
