Pneumatic conveying line
Form of pneumatic conveying includes dilute phase conveying, medium phase
conveying, & dense phase conveying.
Application: steel
industry, non-ferrous industry, chemical industry, food industry, thermal power
etc
The selection of suitable form depends on material physical and chemical
properties, flow, distance, technical and layout requirements etc.
|
Process |
Description |
|
|
Salt pneumatic conveying.
Convey refined salt to packing silo by clean
compressed air. |
|
|

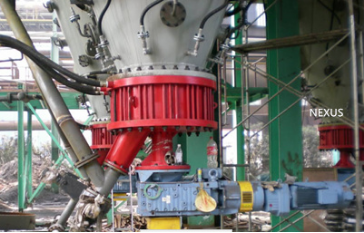

Sinter ash conveying in steel industry.
|
|
|
Coal powder conveying in non-ferrous industry |
|
|
Chemical industry |
|
|
Sugar conveying |
Components
|

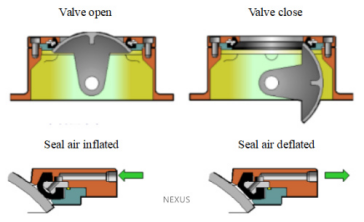

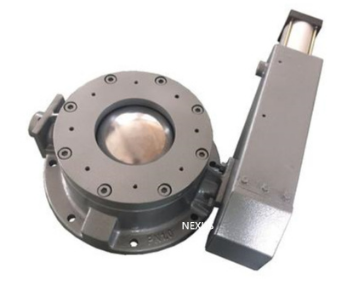

Dome valve |
|
|
|
|
|

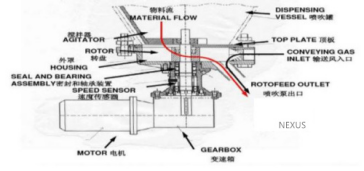

Rotary feeder |
|
|
|
|
|

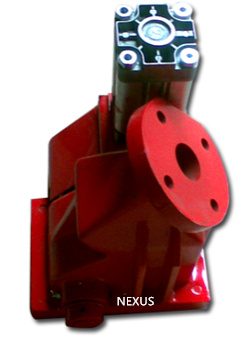

Discharge valve |
|
|

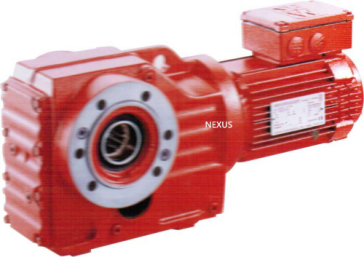

SEW gearbox and motor |
|
|

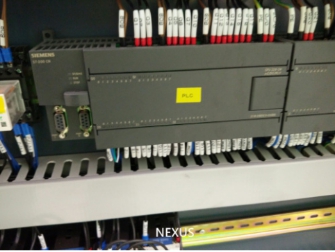

Siemens PLC |
|
Data subject to change without notice
