Copper Processing Equipment
Comprehensive equipment for copper rod, profile, busbar, wire, and pipe casting and extrusion processes.
Copper Rod Upward Casting Machine
Efficient upward casting machines for producing high-quality copper rods.
- Rod Sizes: Φ40x4, Φ50x4.5, Φ60x6 mm
- Casting Quantity: 2-24 pieces
- Speed: 0.3-3 m/min
Copper Profile Casting Machine
Specialized machines for continuous casting of various copper profiles.
- Product Size: ≤ 120x20 mm
- Speed: 100-160 mm/min
Copper Busbar, Wire & Profile Extrusion Machine
Versatile extrusion machines designed for producing copper busbars, wires, and complex profiles with different capacities and section areas.
Hydraulic Drawing Bench
Powerful hydraulic drawing benches (50-ton and 100-ton drawing force) for precise dimensioning.

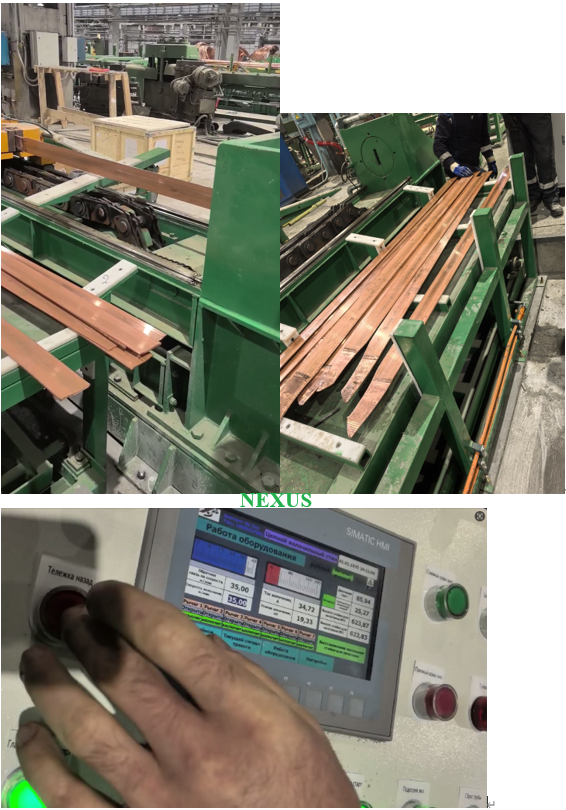

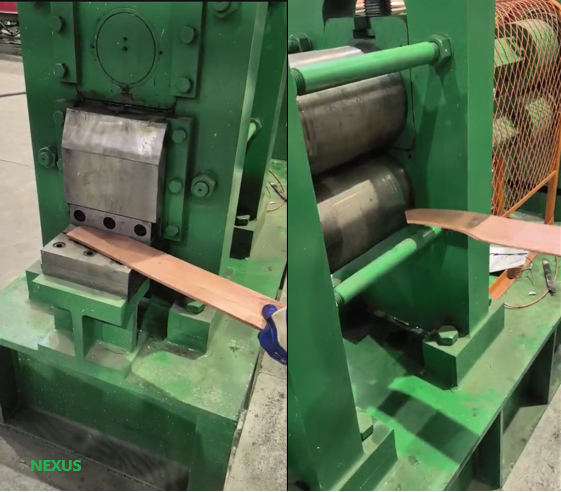

We also offer complementary equipment including edge cutting & pointing machines and single chain drawing mills equipped with Siemens PLC control.
Copper Busbar Tin Coating Line
Enhance conductivity and improve anti-oxidization features of copper busbars with our complete tin coating line.
The line comprises feed, coating (degreasing, pickling, tin coating, washing, drying), unloading & stacking sections, plus water treatment and exhaust air collection systems, and electrical controls.
Copper Pipe Casting Machine
Horizontal continuous casting machines for producing copper pipes.
- Type: Two strands, four strands, six strands
- Size: Φ30-150 mm
- Speed: 120-700 mm/min

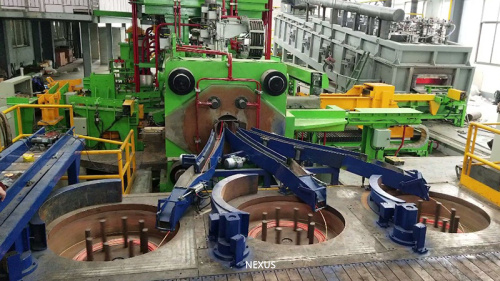

Copper Extrusion Press
Used for the extrusion of copper and copper alloy tubes, profiles, rods, and wires. Available in single-action and double-action configurations.
- Extrusion Force: Up to 40MN

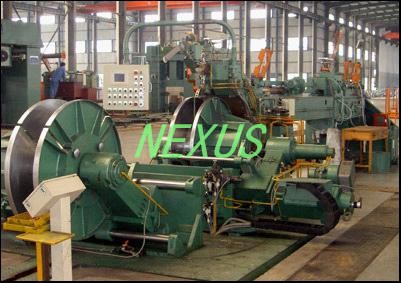

Copper Tube Recoiler Unit
After processing on the bullblock, the recoiler unit performs straightening, cleaning, drying, defect detection (printing), pre-bending, and recoiling for final delivery or further annealing. Features Siemens PLC control.

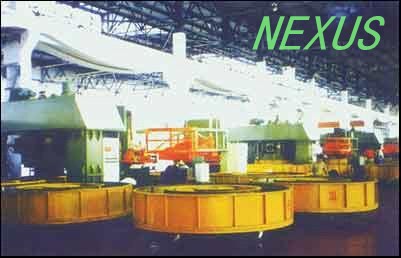

Upside Down Type Copper Tube Bullblock
High-efficiency equipment for drawing copper tubes with excellent quality. Includes Siemens PLC control system for precision operation.

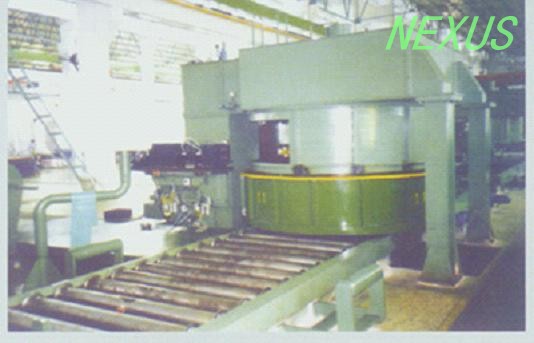

Inner Grooved Copper Tube Forming Machine
During the drawing process, a special rotary device presses the inside wall of the copper tube to form specific teeth patterns with varying numbers and angles. Controlled by Siemens PLC.
Additional Equipment Available
Pilger mills, hydraulic pointing machines, combined drawing machines, continuous induction annealing furnaces, and other related equipment are also available upon request.
